ANS21

Surcharge for acquisition of parts

For some products, we have to add a surcharge of 14 Euros net per ordered piece. Please read about background information and details in the following Link.

read more
ANS21
ANS21
ANS21-L
ANS21-L

Single circuit solar controller, Charging pump controller, Single circuit controller as PV version

Icon solar array controller, charging pump controller, swimming pool controller

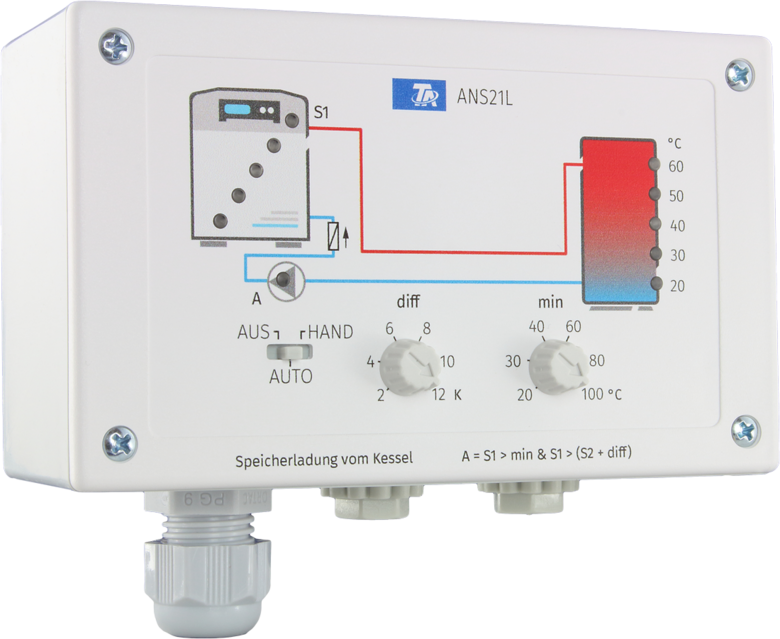

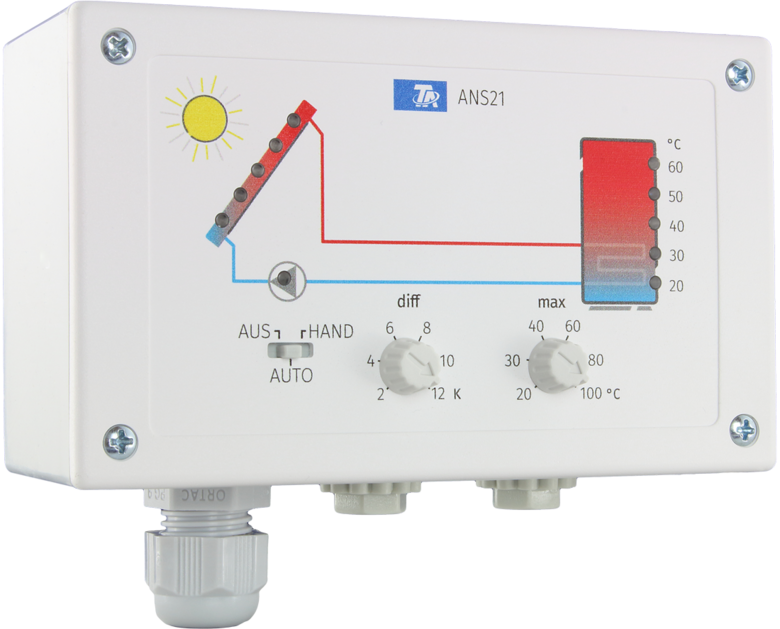

The ANS21 or ANS21-L unit is a solar controller which has been kept deliberately simple when it comes to installation and operation. Both, the collector and the tank temperature, are indicated using light bars. The ANS21-PV is suitable for operation in direct current networks up to 24V. Switching between solar and load pump function is possible regardless of the front diagram.

Icon InputsIcon Outputs
Price group 1

Scope of delivery:

  • 1x Collector sensor KFPT1000
  • 1x DHW tank sensor BFPT1000
  • 1x Immersion sleeve TH140
  • power cable, Installation equipment

Scope of delivery:

  • 1x Boiler sensor KFPT1000
  • 1x DHW tank sensor BFPT1000
  • 1x Immersion sleeve TH140
  • power cable, Installation equipment
  • 1 relay output
  •  Adjustable differential temperature
  • Overtemperature protection for the tank or minimum threshold for boiler
  • Separate display for generator and tank temperature
  • Collector overtemperature switch-off
  • Sensor short circuit and open circuit detection

Dimensions: 126,8 x 76,5 x 45,5 mm
