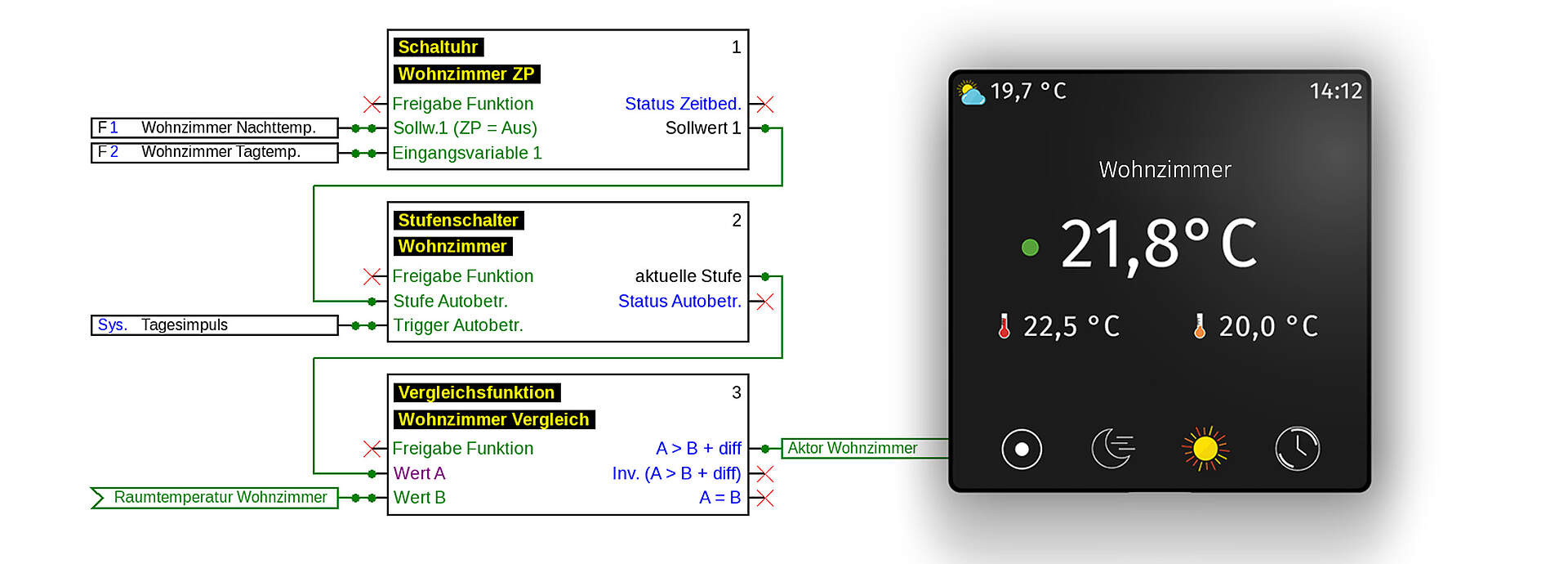

With the new firmware version, we have implemented several new features. Especially the Stage selector switch has been extended: the mode “values” lets you – instead of stages ranging from 0 to 6 – output analogue values. We have already prepared new programming examples for this.

On top of that, there are new features for the range function and new input variables for the Counter and Energy meter functions. In the system values, the group “sun” has new added values. The function Message has received new output variables: “Number of events” (resets upon message deletion), as well as “Last date” and “Last Time”, which log the time and date of last message activation.

A DL input can now be connected directly to a DL output, and the unit measurement ppb (part per billion) has been added. More information and further changes are found in the changelogs, located under “Downloads”.

Hardware changes for immersion heaters

The adjustable immersion heater EHS-R has received a PWM output, and its main relay can be force-switched on. Additionally, all immersion heaters now ship without a shock-proof three-pin plug pre-mounted to the mains cables. This is to ensure installation in accordance with norms and to reduce potentially faults with unsuitable wall sockets. We recommend a fixed mains installation or a suitable plug connector (e.g. CEE17). The functionality of the immersion remains unchanged of course.
