Extensive load and energy management

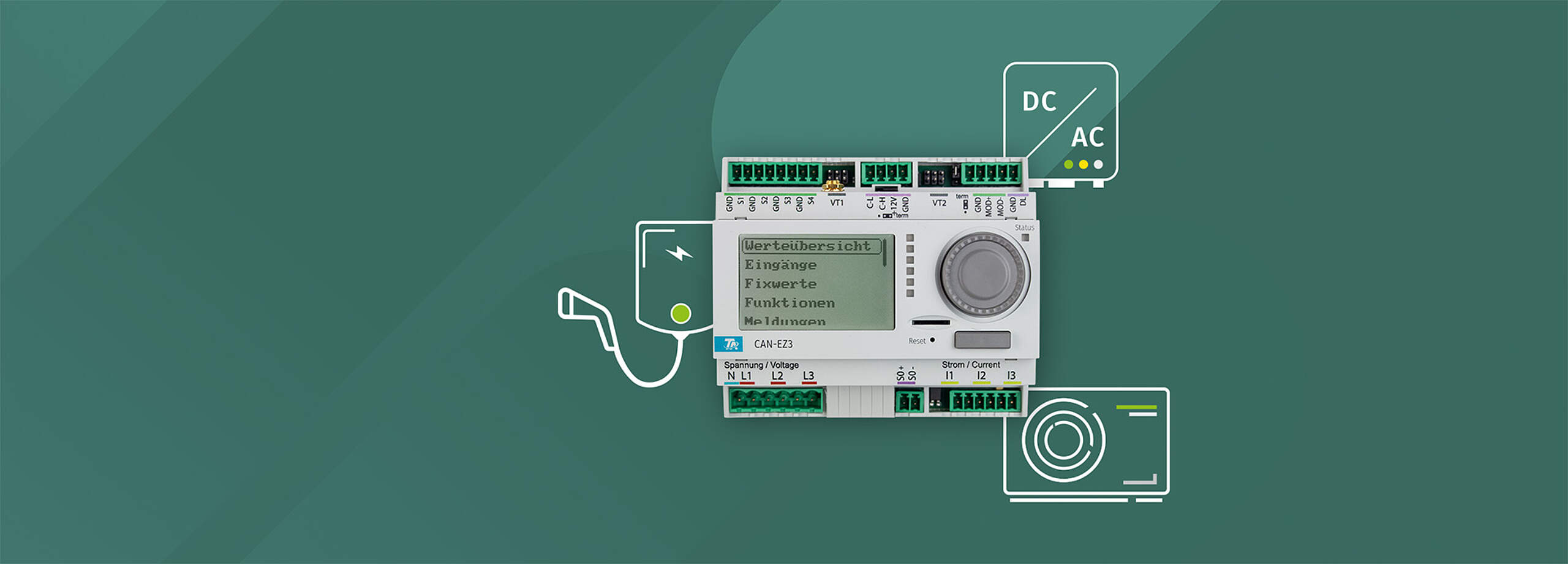

The x2 functions for energy management combined with the energy meter CAN-EZ3 and power controllers allow many options for optimizing private power consumption of PV systems, as well as effective load management and targeted usage of excess power.

Erneuerbare Energie priorisieren.

PV Überschuss nutzen

Die zentrale Aufgabe von Energiemanagement besteht darin, zur Verfügung stehende Energieformen unter Berücksichtigung von Bedarf, Ertrag, Speicherkapazitäten und Kosten entsprechend zu priorisieren.

Wärmepumpen überschussgeführt betreiben

Die Wärmepumpe ist oftmals die zentrale Komponente im Energiemanagement. Als elektrischer Verbraucher kann sie gezielt zur Nutzung von überschüssiger PV-Leistung genutzt werden und stellt auf der anderen Seite die nötige Energie für Raumwärme und Warmwasserbereitung zur Verfügung - oder auch zur Kühlung.

70% infeed rule

In Germany, according to the EEG, no more than 70% of the nominal power may be fed into the grid, e.g. 7 kW of a 10 kWp system. The x2 series lets you optimize your private consumption, such that ideally the inverter’s effective power limiter won’t be necessary. We’ll show you how [Link only available in German).

Power-to-Heat

2^nd example: ATON is a plug & play solution to use surplus PV energy – without additional wiring. It consists of an energy meter and an immersion heater, continuously controllable from 50W up to 3 kW, for mounting in a combi or buffer storage cylinder.

Wirelessly connected, the energy meter transmits the available power to the immersion heater. The immersion heater sends all measured values (HLCS, internal temperature and measurements of both external sensors) back to the energy meter.

ATON

Plug & Play Lösung für Power-to-Heat — simplified visualization to clearly show a possible use case

Visualization & data logging

The C.M.I. (sold separately) allows end customers safe and easy access to settings, e.g. using a mobile app with readily prepared visualization.

Connect the C.M.I., upload the visualization and access it using a PC or mobile app. Connection to the internet is optional, not necessary.

Download

Perks

Minimal installation thanks to the new x2 wireless technology and factory settings
Freely programmable for individual demands
Energy meter and immersion heater coupled by default
Cascadable with up to 12 immersion heaters per energy meter
Wireless range ~1km in the open / 2 reinforced concrete floors or walls

Potential

Optimization of private consumption quota
DHW preparation outside of heating periods
Support of heating efforts
Regulation of power controllers via DL-bus for extended energy management
Remote access, data logging and visualization via C.M.I.
Dynamic („soft“) limitation of active power (EEG 2012, Germany)

conformity

Other commercially available solutions use phase angle control. Smart meters detect their short-term usage of power, which costs the consumer money.

The intelligent immersion heater of the ATON set has sinusoidal power consumption, which avoids the unnecessary and costly power consumption.
