Volume flow sensor

Huba — FTS-DL

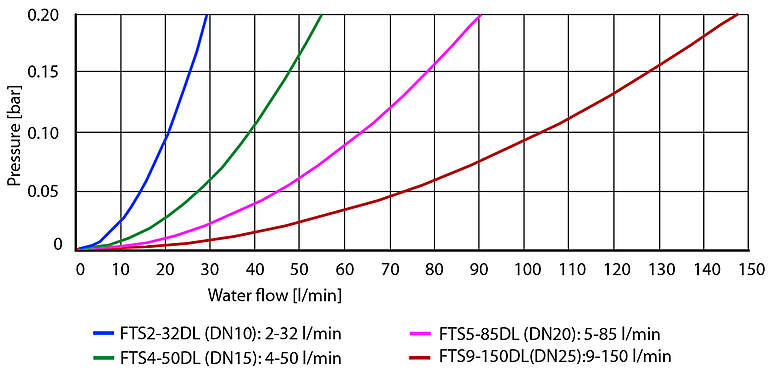

Huba Druckverlustkurve 4x — Druckverlustkurve

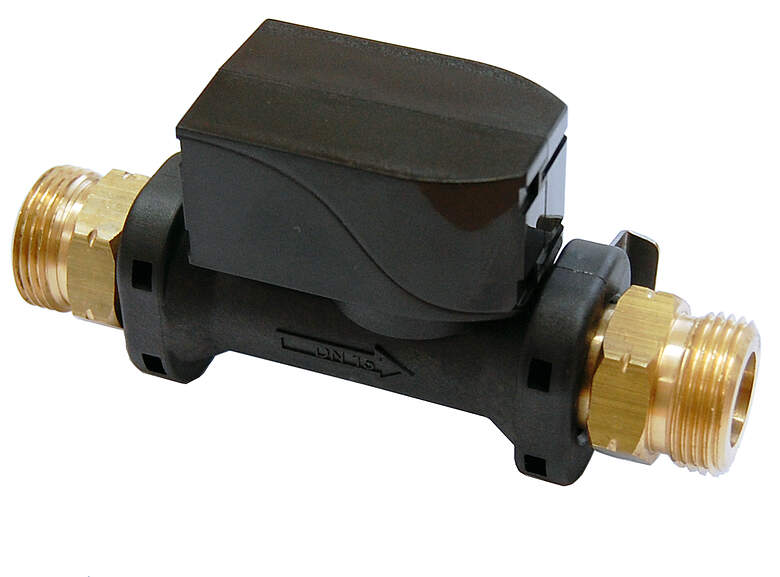

Volume flow sensor

The measurement principle of the FTS electronic volume flow sensor is based on Karman vortex streets. An obstructing body projecting into the flow generates eddies. These are detected by a piezoelectric paddle and evaluated by the integrated electronics. A microprocessor converts the analogue measurement values into a serial digital signal suitable for the DL bus.

Price group 1

01/FTS2-32DLVolume flow sensor 2 - 32 l/min € 124,00
excl. 20% VAT

01/FTS4-50DLVolume flow sensor 4 - 50 l/min € 124,00
excl. 20% VAT

01/FTS5-85DLVolume flow sensor 5 - 85 l/min € 129,00
excl. 20% VAT

01/FTS5-85DL-1"Volume flow sensor 5 to 85 l/min € 141,00
excl. 20% VAT

01/FTS9-150DLVolume flow sensor 9 - 150 l/min € 129,00
excl. 20% VAT

01/FTS14-240DLVolume flow sensor 14 - 240 l/min € 309,00
excl. 20% VAT

Druckverlust für FTS14-240DL kann lt. Bedienungsanleitung berechnet werden.

Measurement of flow rates
Measurement of media temperature (PT1000 sensor)
Connection option for an additional PT1000 sensor
Connection option of a pressure sensor PRS0-6
No moving parts in the flow channel
Freely selectable fitting position
Measurement principle insensitive to contamination and medium properties
Drinking water approvals: KTW and DVGW process sheet W270, WRAS
FTS14-240DL: only suitable for controllers with X2 technology
DL bus load 25 %

Temperature measurement range.................................. -40°C to +125°C

Measurement ranges

FTS2-32DL..........................................................2 to 32 l/min

FTS4-50DL..........................................................4 to 50 l/min

FTS5-85DL..........................................................5 to 85 l/min

FTS9-150DL........................................................9 to 150 l/min

FTS14-240DL....................................................14 to 240 l/min

Connection thread

FTS2-32DL............................................................................ 1/2“

FTS4-50DL / FTS5-85DL...................................................... 3/4“

FTS5-85DL-1"..........................................................................1“

FTS9-150DL .............................................. plastic thread 1 1/4“

FTS14-240DL .............................................. brass thread1 1/2“

Overall length

FTS2-32DL.....................118 mm

FTS4-50DL.....................130 mm

FTS5-85DL.....................151 mm

FTS9-150DL...................120 mm

FTS14-240DL.................134 mm
