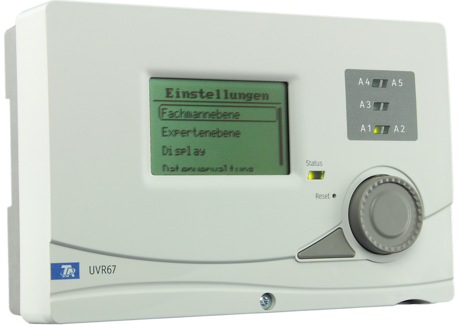

UVR67

Universal Controller
Universal Controller

Universal controller

Icon heating controllerIcon solar array controller, charging pump controller, swimming pool controller

Universal controller with more than 800 adjustable programs. The UVR67 universal controller features various thermostatic, differential temperature, speed control and heating circuit control functions for use in solar thermal and heating systems, as well as building drying.

Icon DL-masterIcon InputsIcon OutputsIcon Interfaces
Price group 1

Scope of delivery:

  • power cable
  • installation equipment

Scope of delivery:

  • 1 collector sensor PT1000
  • 2 boiler sensors PT1000
  • 2 immersion sleeves 140 mm
  • power cable
  • installation equipment

Scope of delivery:

  • 1 collector sensor PT1000
  • 3 boiler sensors PT1000
  • 3 immersion sleeves 140 mm
  • power cable
  • installation equipment

Scope of delivery:

  • 1 humidity sensor
  • power cable
  • installation equipment

Scope of delivery:

  • 1 boiler sensor PT1000
  • 1 DHW tank sensors PT1000
  • 1 room sensor RAS+DL
  • 1 external sensor AUSPT
  • 1 roll spring
  • power cable
  • installation equipment

Scope of delivery:

  • 1 boiler sensor PT1000
  • 3 DHW tank sensors PT1000
  • 1 room sensor RAS+DL
  • 1 external sensor AUSPT
  • 2 immersion sleeves 140 mm
  • 1 roll spring
  • power cable
  • installation equipment

Functions

  • 5 freely programmable time programs
  • Status display for system malfunctions
  • Pasteurisation function, pump anti-seizing protection
  • Collector cooling function
  • Collector overtemperature limitation
  • Checking system functions
  • 3 heat meters
  • DL bus for connection of external sensors
  • Datalogging via Micro SD card
  • Speed control of high efficiency pumps via 2 control outputs PWM / 0-10 V
  • Output 3 can be configured as potential-free

Possibilities with the CAN bus

  • Datalogging with the C.M.I.
  • Remote access (C.M.I., CAN-MTx2, ...)
  • Custom visualisation (has to be created with our software TA-Designer)

6 inputs of the types:

  • PT1000
  • KTY(2kΩ)
  • room sensor
  • radiation sensor
  • Input 6: additional pulse input for flow rate transducer (pulses max. 20 Hz) and wind sensor

7 outputs of the types:

  • 5 relay outputs
  • 2 multi-function outputs: PWM / 0-10V

TA-Designer

End users operate the system via simple user interfaces. With the TA-Designer, you can create these interfaces to suit your project.

Linux:

Two installation methods for Linux are supported:

  • Debian package (.deb) (e.g. Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g. Fedora, openSUSE, Mageia)

Both methods add a menu entry to the GNOME or KDE menu with which the programme can be started. For the installation root permissions are required.

Debian package

The package can basically be installed simply by double-clicking it in the file manager. If this is not possible, the installation can be done with the command line programme dpkg in a terminal window:

dpkg -i ta-designer-1.26-amd64.deb

For the installation, root permissions are required. To do this, either enter su before executing the command, followed by the corresponding password prompt, or precede the command with sudo and enter the password when prompted.

RPM package

In principle, the package can be installed simply by double-clicking on it in the file manager. If this is not possible, the installation can be done with the command line programme rpm in a terminal window:

rpm -i ta-designer-1.26-x86_64.rpm

To update the programme (an older version is already installed), -U should be used instead of -i.

For the installation, root permissions are required. To do this, either enter su before executing the command, followed by the corresponding password prompt, or precede the command with sudo and enter the password when prompted.

Winsol

Winsol enables the recording and evaluation of the data recorded by the data logger (C.M.I., BL-NET or D-LOGG).

Attention: The firmware of the datalogger might have to be updated to use it with the current version of Winsol!

Supported dataloggers:

  • C.M.I. - version 1.25 and above
  • BL-NET - version 2.17 and above
  • D-LOGG /BL232 - version 2.9 or above

Linux:

Three methods of installation for Linux are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)
  • Raspberry Pi (.deb) version 3 and above

A menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Note: When using Ubuntu 18.04, the package "libcurl4" might need to be installed to execute Winsol (sudo apt-get install libcurl4).

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Raspberry Pi package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i winsol-2.21-armhf.deb

Root authorization is required for the installation. For this, prefix the command sudo and enter the password when queried.
