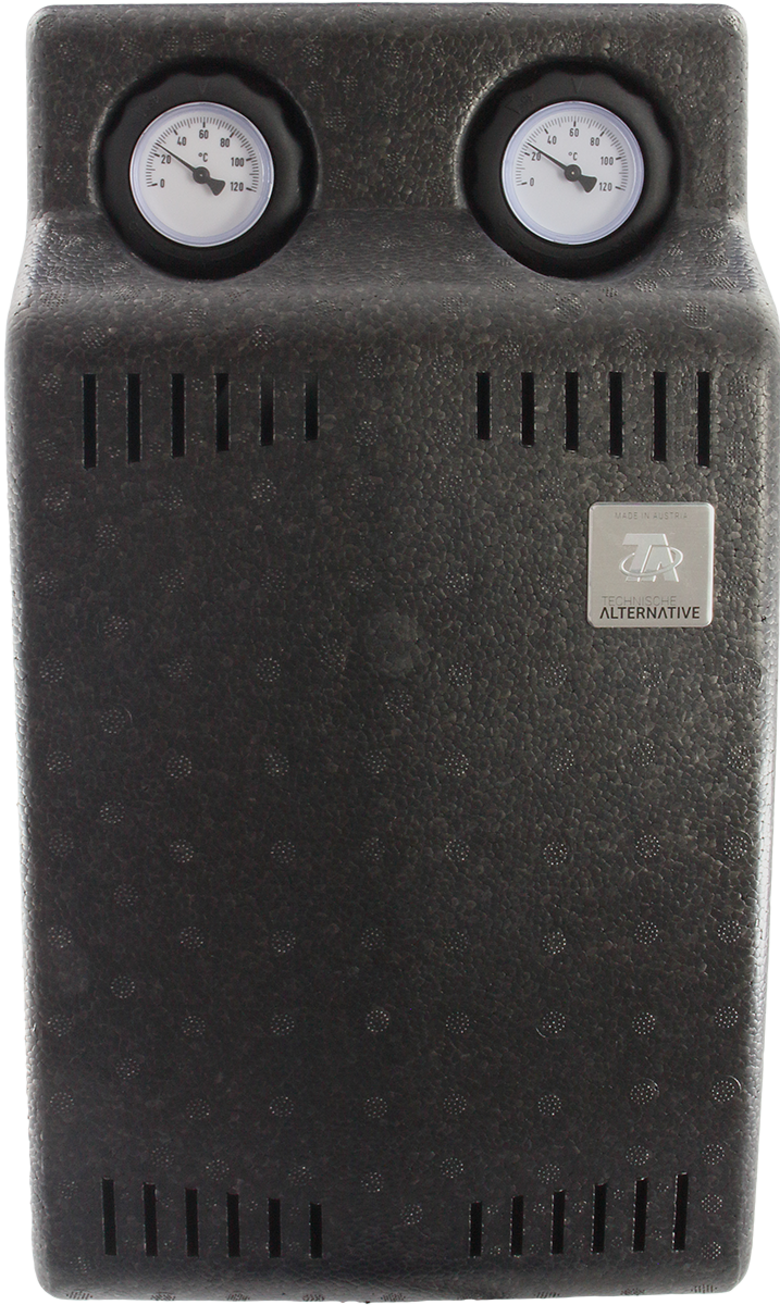

Pump and Mixer Group
The pump and mixer group serves to control the flow temperature in heating and cooling circuits. The PMG is connected via CORA-DL to an x2 device. The integrated controller does not serve as a standalone controller for the PMG. Connection with a freely programmable controller (via CORA-DL or CORA wireless) and integration into its programming is necessary.
Price group 3

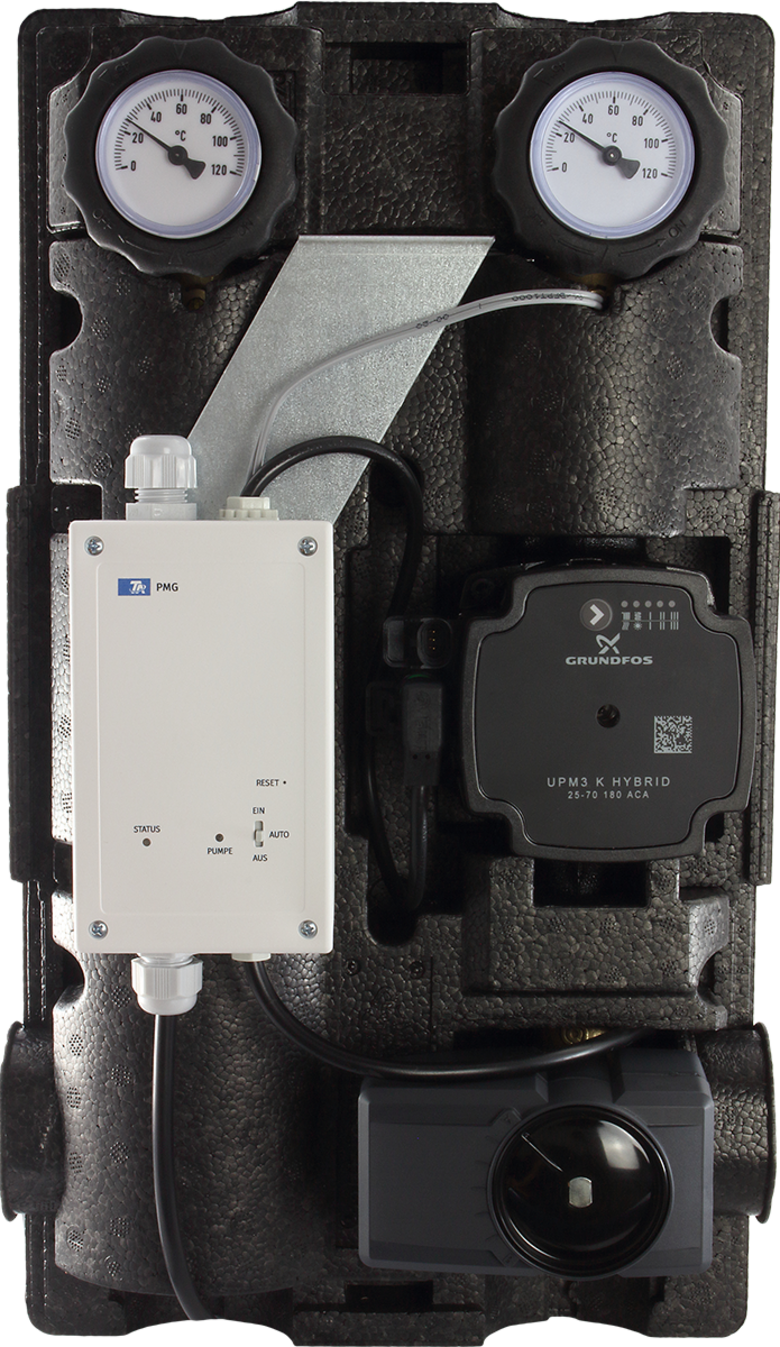

PWM signal cable for speed control of the Grundfos UPM3
- All-in-one solution for heating or cooling circuits
- Communication via CORA-DL or CORA wireless
- No further wiring for sensors or outputs on the x2 controller is necessary
- Integration into the TAPPS2 programming as a CORA device necessary (TAPPS2 version min. 1.20)
- Optional inputs on the PMG:
- Input for a contact thermostat for High limit safety cut-out (HLSC)
- Sensor input for a PT1000 sensor or FTS flow sensor
- All values transmitted to x2 controller via CORA
- Simple installation
- Horizontal or vertical
