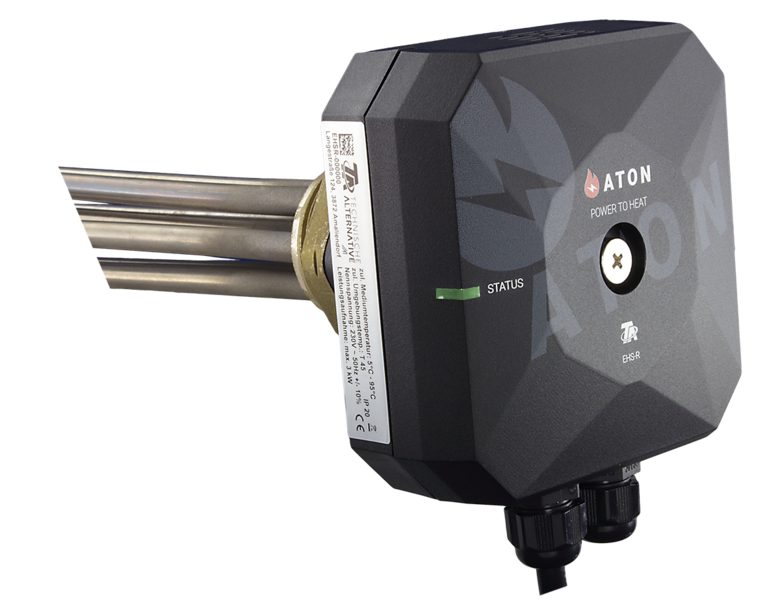

Immersion heater – 3000 W variable control
currently not available
The EHS-R immersion heater (included with the ATON) can be controlled directly by the freely programmable controllers (UVR16x2, UVR610, ...) via PWM, with a variable output from 50 W to 3000 W. The immersion heater sends the sensor values back to the CAN-EZ3 for further utilisation or forwarding to the CAN bus or DL bus.
3 Inputs
- 2 sensor inputs PT1000
- 1 PWM input 0-100% if not CORA-controlled
Interfaces:
- CORA-F (wireless)
- CORA-DL (wired)
total length of immersion heater: 410 mm
screw thread: 1 1/2"
TAPPS2
The TAPPS2 programming and planning software enables the creation of a logic diagram and the parameterisation of all x2 units (and the UVR1611).
Linux:
Two methods of installation are supported:
- Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
- RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)
For both methods, a menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.
Debian package
The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:
dpkg -i tapps2-1.12-amd64.deb
Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.
RPM package
The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:
rpm -i tapps2-1.12-x86_64.rpm
To update the program (when an older version is already installed), -u should be use instead of -i.
Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.
B2B Sales
Professionals can order by e-mail, stating their customer number.
Currently taking no more orders
A large backlog of orders, paired with new orders coming in continuously and ongoing delivery shortages have forced our hand to stop taking orders for EHS, EHS-R as well as ATON and ATON+.
Confirmed orders remain as such and will be fulfilled in order of when they were placed. We will notify you via our newsletter (sign up here), on our website and social media once we can accept orders once more.
Thank you for understanding.
Use in fresh water tanks
We expressly advise against using our heating rods in drinking water storage tanks! The heating rod is intended for installation in buffer storage tanks in which heating water is circulating.
From serial number EHSR-002956 onwards, the heating rod is supplied with a Teflon coating. This means that the heating rod can basically be used in enamelled storage tanks. The use of a suitable sacrificial anode in the storage tank and its regular inspection is nevertheless recommended.
We do not offer any guarantee or warranty in case of calcification and galvanic corrosion!
