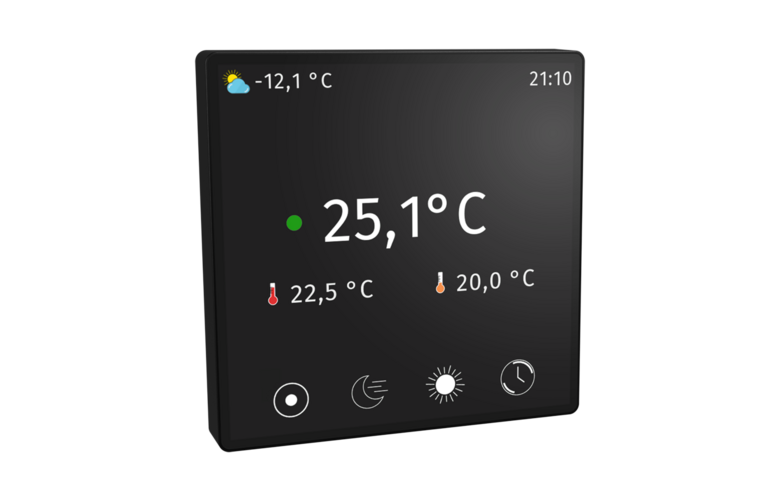

Room sensor with 4" touch display
Room sensor with 4" touch display

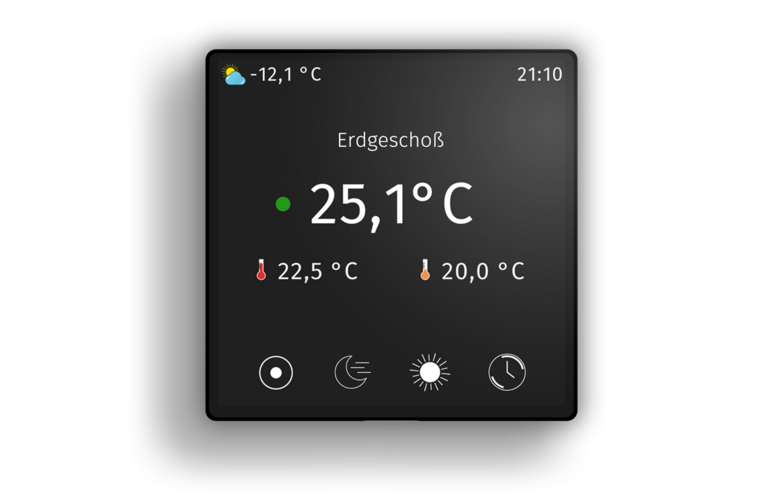

The RAS-CT4 is a room sensor for temperature, relative and absolute humidity, and dew point.
The room sensor offers basic settings for up to three functions of type heating circuit, cooling circuit and individual room control, and optionally one time switch function assigned to each.
The RAS-CT4 is connected to an x2 device via CORA (wired or wireless). Configured via programming of the x2 device in TAPPS2..
An external PT1000 sensor can be connected to the RAS-CT4. It also as a potential-free switching output.
Variants with CO2 sensor for measuring ambient pressure and air quality are available.
1 input:
- PT1000 temperature sensor
1 output:
- potential-free switching output
(max. switching power: 5A)
Interfaces:
- CORA-F
- CORA-DL (only RAS-CT4-DL)
DL bus load: 10%

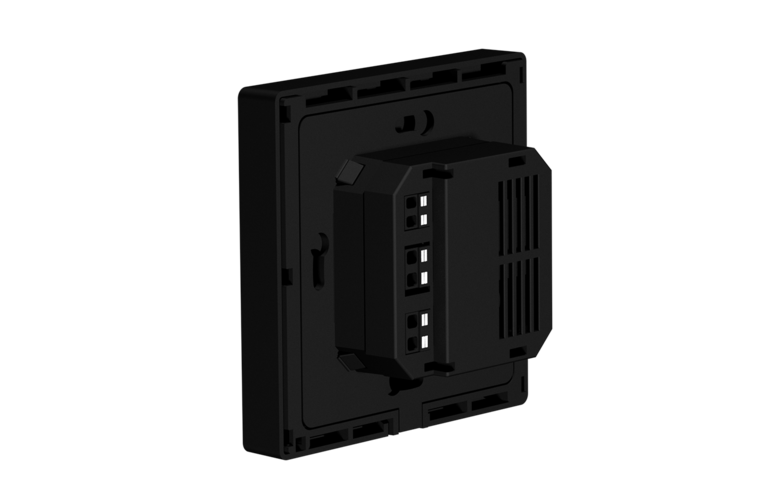

RAS-CT4 is mounted in a flush-mounted box
Housing dimensions:
- 84 x 84 x 13,1 mm
- total depth: 35,45 mm
Protection class:
- IP20
