Universal Controller UVR610S

Universalregler UVR610

Freely programmable universal controller

Icon heating controllerIcon Energy management, Power-to-HeatIcon Ventilation controller, e.g. depending on CO2 valuesIcon solar array controller, charging pump controller, swimming pool controllerIcon Controlling window blindsIcon Controlling of cooling circuits / Integration of air conditioning Icon Lighting controller

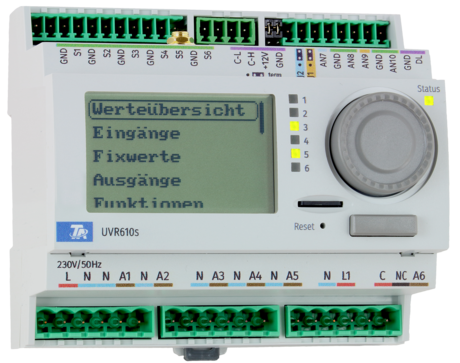

The UVR610S freely programmable controller has the same technology as the UVR16x2 controller. The controller is programmed using the TAPPS2 software. Data transfer is done via Micro SD card or CAN bus. A 24V-output and/or the M-Bus interface can be activated by jumpers. The UVR610S housing is designed for control cabinets (45 mm standard installation bezel).

Icon x2techIcon DL-masterIcon InputsIcon OutputsIcon Interfaces
  • Mounting kit in control cabinet for 45 mm standard installation bezel
  • 24 V output and/or M-Bus interface are available via Jumper
  • Dimensions housing (W x H x D): 106 x 91 mm

6 inputs of the types:

  • PT1000, KTY(1kΩ, 2kΩ), PT100, PT500, Ni1000TK5000, Ni1000, NTC, room sensor, radiation sensor, humidity sensor, rain sensor, max. pulse 10 Hz, voltage up to 3.3V, resistance 1-100kΩ, digital
  • Input 5, 6: 0-10V

10 outputs:

  • 6 relay outputs, one of which can be a potential-free changeover contact
  • 4 multi-function outputs, optionally 0-10V, PWM, relay (e.g. with HIREL22)

Interfaces:

  • CAN-Bus
  • CORA-DL
  • DL-Bus
  • M-Bus (available via Jumper)
  • Micro SD-Card (included in scope of delivery)

Firmware UVR610

TAPPS2

The CAD software TAPPS2 allows creating configurations graphically for all x2 devices and the UVR1611.

Linux:

Two methods of installation are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)

For both methods, a menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

TA-Designer

The program TA-Designer enables the programming of the CAN-Touch and the easy creation of an online schema for the C.M.I. and the BL- NET.

Winsol

Winsol enables the recording and evaluation of the data recorded by the data logger (C.M.I., BL-NET or D-LOGG).

Attention: The firmware of the datalogger might have to be updated to use it with the current version of Winsol!

Supported dataloggers:

  • C.M.I. - version 1.25 and above
  • BL-NET - version 2.17 and above
  • D-LOGG /BL232 - version 2.9 or above

Linux:

Three methods of installation for Linux are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)
  • Raspberry Pi (.deb) version 3 and above

A menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Note: When using Linux Mint or Ubuntu (version 18.04 or above) the package "libcurl3" might need to be installed to execute Winsol (sudo apt-get install libcurl3).

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Raspberry Pi package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i winsol-2.21-armhf.deb

Root authorization is required for the installation. For this, prefix the command sudo and enter the password when queried.
