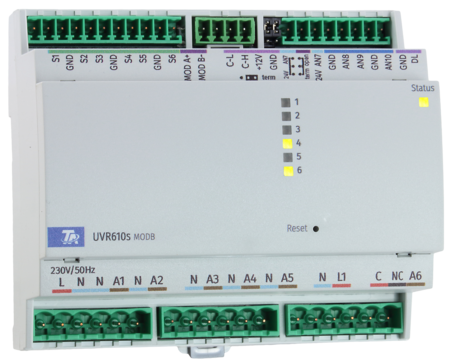

UVR610S-OD with Modbus Interface

[Translate to Englisch:]
[Translate to Englisch:]

UVR610S-OD with Modbus Interface

Icon heating controllerIcon Energy management, Power-to-HeatIcon Ventilation controller, e.g. depending on CO2 valuesIcon solar array controller, charging pump controller, swimming pool controllerIcon Controlling window blindsIcon Controlling of cooling circuits / Integration of air conditioning Icon Lighting controller

Same functionality as the UVR610S-OD. Instead of the switchable M-Bus interface, this device has a hardwired Modbus and is therefore particularly suitable for communication with third party devices in the heating and ventilation sector.

Icon x2techIcon CORA-DLIcon DL-masterIcon InputsIcon OutputsIcon Interfaces
  • Mounting kit in control cabinet for 45 mm standard installation bezel
  • 24 V output and/or M-Bus interface are available via Jumper
  • Dimensions housing (W x H x D): 106 x 91 mm

6 inputs of the types:

  • PT1000, KTY(1kΩ, 2kΩ), PT100, PT500, Ni1000TK5000, Ni1000, NTC, room sensor, radiation sensor, humidity sensor, rain sensor, max. pulse 10 Hz, voltage up to 3.3V, resistance 1-100kΩ, digital
  • Input 3,4, 5, 6: 0-10V

10 outputs:

  • 6 relay outputs, one of which can be a potential-free changeover contact
  • 4 multi-function outputs, optionally 0-10V, PWM, relay (e.g. with HIREL22)

Interfaces:

  • CAN bus
  • CORA-DL
  • DL bus
  • Modbus

TAPPS2

The TAPPS2 programming and planning software enables the creation of a logic diagram and the parameterisation of all x2 units (and the UVR1611).

Linux:

Two methods of installation are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)

For both methods, a menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

TA-Designer

End users operate the system via simple user interfaces. With the TA-Designer, you can create these interfaces to suit your project.

Linux:

Two installation methods for Linux are supported:

  • Debian package (.deb) (e.g. Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g. Fedora, openSUSE, Mageia)

Both methods add a menu entry to the GNOME or KDE menu with which the programme can be started. For the installation root permissions are required.

Debian package

The package can basically be installed simply by double-clicking it in the file manager. If this is not possible, the installation can be done with the command line programme dpkg in a terminal window:

dpkg -i ta-designer-1.26-amd64.deb

For the installation, root permissions are required. To do this, either enter su before executing the command, followed by the corresponding password prompt, or precede the command with sudo and enter the password when prompted.

RPM package

In principle, the package can be installed simply by double-clicking on it in the file manager. If this is not possible, the installation can be done with the command line programme rpm in a terminal window:

rpm -i ta-designer-1.26-x86_64.rpm

To update the programme (an older version is already installed), -U should be used instead of -i.

For the installation, root permissions are required. To do this, either enter su before executing the command, followed by the corresponding password prompt, or precede the command with sudo and enter the password when prompted.

Winsol

Winsol enables the recording and evaluation of the data recorded by the data logger (C.M.I., BL-NET or D-LOGG).

Attention: The firmware of the datalogger might have to be updated to use it with the current version of Winsol!

Supported dataloggers:

  • C.M.I. - version 1.25 and above
  • BL-NET - version 2.17 and above
  • D-LOGG /BL232 - version 2.9 or above

Linux:

Three methods of installation for Linux are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)
  • Raspberry Pi (.deb) version 3 and above

A menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Note: When using Ubuntu 18.04, the package "libcurl4" might need to be installed to execute Winsol (sudo apt-get install libcurl4).

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

Raspberry Pi package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i winsol-2.21-armhf.deb

Root authorization is required for the installation. For this, prefix the command sudo and enter the password when queried.
