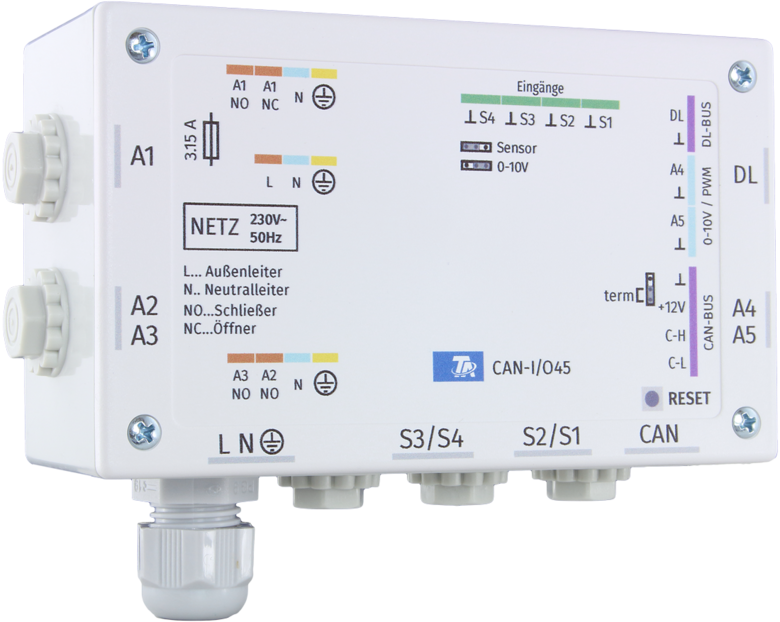

CAN-I/O45

CAN-I/O45
Dimensions [mm]

CAN-Erweiterungsmodul 45

The CAN-I/O module provides additional inputs and outputs for the freely programmable universal controllers. This extension can process up to 44 functions, but it has no clock function and no own power supply.

Icon x2techIcon DL-masterIcon InputsIcon OutputsIcon Interfaces

Outputs:

  • 3 relay outputs
  • 2 multi-function outputs, optionally 0-10V, PWM, relay (e.g. with HIREL22)

TAPPS2

The TAPPS2 programming and planning software enables the creation of a logic diagram and the parameterisation of all x2 units (and the UVR1611).

Linux:

Two methods of installation are supported:

  • Debian package (.deb) (e.g., Debian, Ubuntu, Mint)
  • RPM package (.rpm) (e.g., Fedora, openSUSE, Mageia)

For both methods, a menu entry is added to GNOME or the KDE menu, with which the program can be launched. Root authorization is required for installation.

Debian package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program dpkg in a terminal window:

dpkg -i tapps2-1.12-amd64.deb

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.

RPM package

The package can be installed simply by double clicking it in the file manager. If this is not possible, the installation can be done using the command line program rpm in a terminal window:

rpm -i tapps2-1.12-x86_64.rpm

To update the program (when an older version is already installed), -u should be use instead of -i.

Root authorization is required for the installation. For this, either simply enter su before executing the command, followed by the respective password query, or prefix the command sudo and enter the password when queried.
